CSE Door Guard Pro

CSE Door Guard Pro

SKU: CSE-DG1

CSE Door Guard Pro

Part No: CSE-DG1

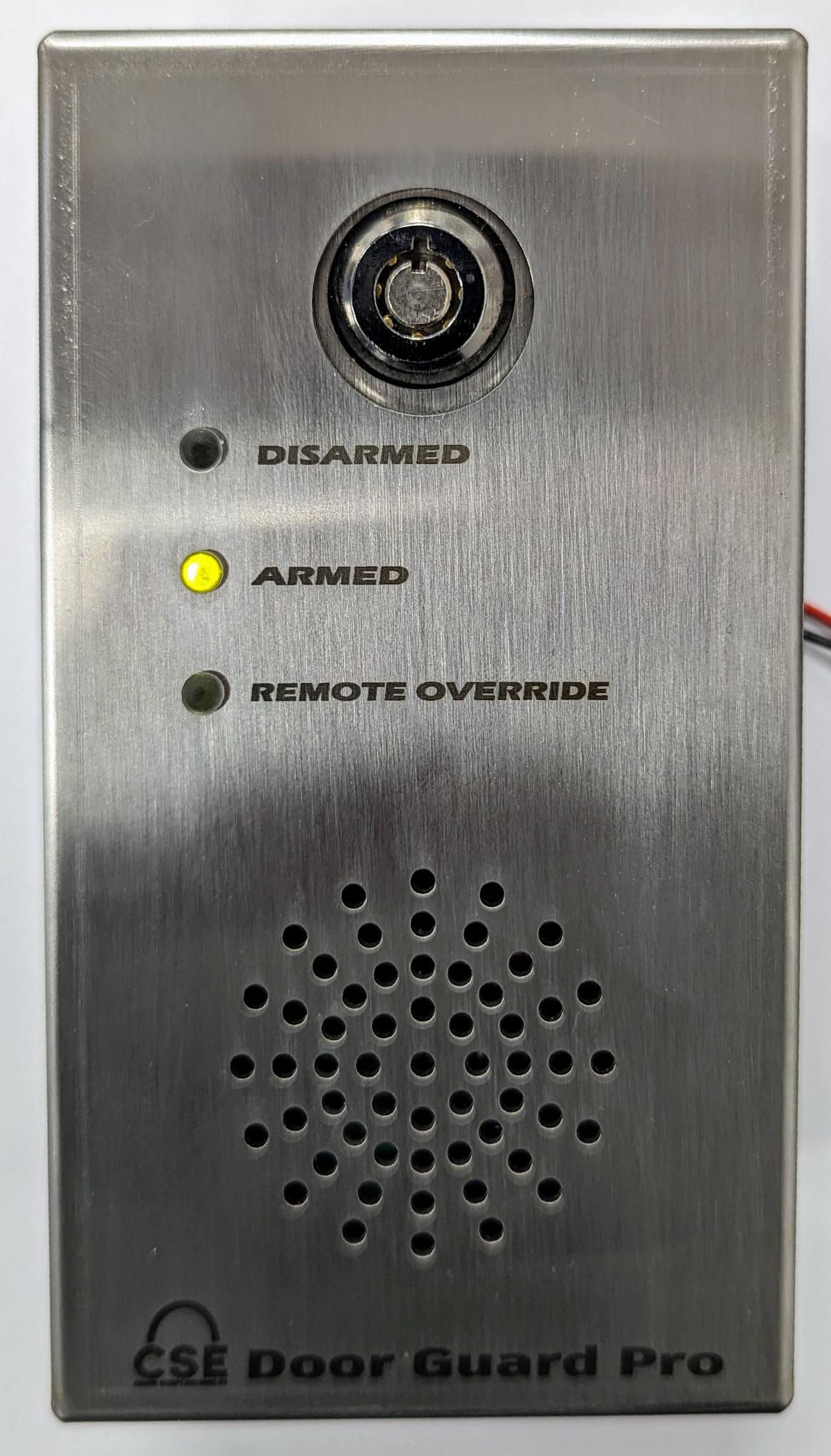

Door alarm and shunt device with audio and visual indicators is an essential security measure for any building.

Our device is designed to provide reliable protection against unauthorized entry / exit, with clear and easy-to-understand alerts that ensure your property is always secure.

Trust us to provide the best in door guard technology for your peace of mind.

Grade 3 Stainless steel fully tampered enclosure.

12v DC

Alarm and Shunt SPCO relays

Audio and Visual Alerts (sound can turned on/off via jumper)

Remote Override function (if Key unavailable)

Hurry Up Function (Set via jumpers)

Compatible with all alarm panels, (onboard 1k resistors, or can be user set via jumper and terminal)

Can be supplied common keyed or random keyed



*Cover can be also laser etched with customer logo if required

  • Technical Info

    Technical Info
    Contact Single Pole Change-Over
    Voltage 12v DC
    Current 1 Amp
    Connection Type PCB Terminal Block 2.5mm
    Environmental
    Operating Temperature -10 to +50
    Storage Temperature -20 to +50
    Operating Humidity Maximum 95% non condensing
    Protective Security Grade 3
    IP Rating IP20
    Dimensions
    Width (92mm) x Length (165mm) x Depth (53)
    Weight 0.9kg
    Enclosure Material 1.5mm Stainless Steel (Cover) 1.5mm Galvanised Steel Base
    *Units Can also be laser branded as per customer requirements

  • SHIPPING INFO

    Shipped via UPS next day service
